Microsoft Graph APIΒΆ

  1. Register an application with the Microsoft identity platform

    e.g. for an app called ticket-3597-v1:

_images/msgraph-overview.png _images/msgraph-redirect-uris.png

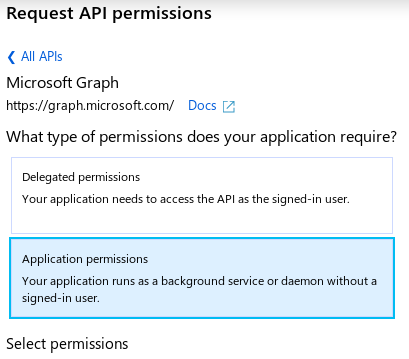

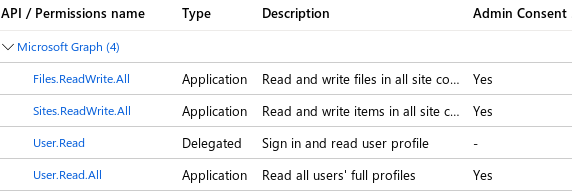

  1. Under the applications API permissions page, choose Add a permission, select Microsoft Graph, and then choose the permissions your app requires under Application permissions:
_images/msgraph-application-permissions.png _images/msgraph-permissions-sites.png

Note

If you change permissions, users and/or admins will have to consent even if they have done so previously.

  1. Under the applications Certificates & secrets page in the Client secrets section, create a New client secret:
_images/msgraph-client-secret.png

Warning

I think you only get a single chance to copy this secret!

  1. Copy the Application (client) ID to and client secret to your web app in Settings, Microsoft Graph, Settings:
_images/msgraph-settings.png

Tip

Make a note of the Redirect URI for the next step.

  1. Under the applications Authentication page in the Redirect URIs section, set the redirect URI for your web site.
_images/msgraph-redirect-uri.png

Tip

The Redirect URI is displayed on your web site under Settings, Microsoft Graph, Settings.

https://docs.microsoft.com/en-us/graph/auth-v2-service#3-get-administrator-consent

GET https://login.microsoftonline.com/{tenant}/adminconsent
?client_id=6731de76-14a6-49ae-97bc-6eba6914391e
&state=12345
&redirect_uri=https://localhost/myapp/permissions
