Workflow

The original workflow notes are in the app documentation: https://gitlab.com/kb/workflow/blob/master/docs/source/index.rst

Development

Kubernetes

(November 2019) We are trying to use Kubernetes for Development - Install for local development with Flowable on our workstations.

Here are a couple of links to .env and settings files:

User Manual

Start Event (`startEvent`)

Note

13/01/2022, We are adding a user to the process on creation (process_identity_add_participant), so perhaps we won’t need the userPk in future? For details, see commit 8361c1103cf09021a795c648cc867ee2549736a6

We need to search for workflow processes started by a user (#5553):

The Flowable startedBy filter looks for the owner of the workflow, but we don’t set an owner.
As a workaround, we set the user_pk in the start event when we create a workflow.

The started_by filter searches for the userPk variable in the _historic_process and _process_instances methods (workflow/activiti.py)

All workflows require a userPk in the startEvent e.g:

<startEvent id="startEvent1" flowable:formFieldValidation="true">
  <extensionElements>
    <flowable:formProperty id="userPk" type="long" required="true"></flowable:formProperty>
  </extensionElements>
</startEvent>

Note

If the start event doesn’t include the userPk, then we throw an ActivitiError exception.

Form Fields

Check Box

To create a series of tick boxes, the type must be boolean:

<activiti:formProperty id="monday" name="Monday" type="boolean" expression="True"></activiti:formProperty>
<activiti:formProperty id="tuesday" name="Tuesday" type="boolean" expression="True"></activiti:formProperty>
<activiti:formProperty id="wednesday" name="Wednesday" type="boolean" expression="True"></activiti:formProperty>

Form Headings

To create a form heading, add a formProperty with _heading appended to the id e.g:

<activiti:formProperty id="invoice_heading" name="Invoice Heading" type="string" required="true" writable="false">

The name will display as the heading.

You can add help text in Settings, Mapping, Mapping, <field name>, Help Text.

Note:

writable must be false
The property must not have a value (not sure where this comes from)
If the name is empty, you must add help text.

HTTP Task

Add the apiUrl to the start event. The requestUrl will use this variable as follows:

${apiUrl}/refresh-variables/${execution.getProcessInstanceId()}/

See this ticket for an example API and a test workflow: https://www.kbsoftware.co.uk/crm/ticket/4974/

Tip

If you are running Flowable inside Kubernetes, then make sure your apiUrl is accessible from there.

Tip

This is a very useful forum post to help with variables in the HTTP task: How should I use PUT/POST in Http task when I am limited to only strings

Mapping

Imported User, import-user

If your workflow includes a user ID in the start event, then select import-user to have the full name and email address automatically generated when the workflow is started.

The work API also regenerates the variables when a task is completed (source code in work.api._variables_to_save).

Options

dataDocument

Attach a simple PDF document with a table containing the form variables.

To get it working, add a form variable with an id of dataDocument. The name will be used as the title e.g: <activiti:formProperty id="dataDocument" name="My Data Document" type="string"></activiti:formProperty>

copyToDocumentManagement

Copy attachments to Alfresco:

<activiti:formProperty id="copyToDocumentManagement" name="Copy Attachments to Share" type="boolean" expression="True"></activiti:formProperty>

deleteWorkflow

Will add a Delete Workflow button to the task.

This is useful when the workflow is in development as the process can be deleted quickly and easily.

Permissions

Process

The Workflow model has two security related fields:

security_history (can view workflow history for any user)
security_history_my (can view workflow history where they have been involved)

Tip

The code below is for checking the permissions for a single process. To get a list of workflows where the user has permission, the WorkflowManager has security_history and security_history_my methods which can be used.

Start by checking the security_history. If the user doesn’t have security_history permission, check security_history_my:

def user_has_security_history_for_process(user, process):
    """Does the user have permission to view the history for this process?"""
    result = False
    workflow = get_workflow(process.process_key)
    if workflow.has_security_history(user):
        result = True
    else:
        # permission to view workflows where they have been involved
        if workflow.has_security_history_my(user):
            # has the user been involved with this process?
            activiti = Activiti()
            identity_list = activiti.process_identity_list(process.process_id)
            if user.pk in set([x.user for x in identity_list]):
                result = True
    return result

Note

Code from work/service.py.

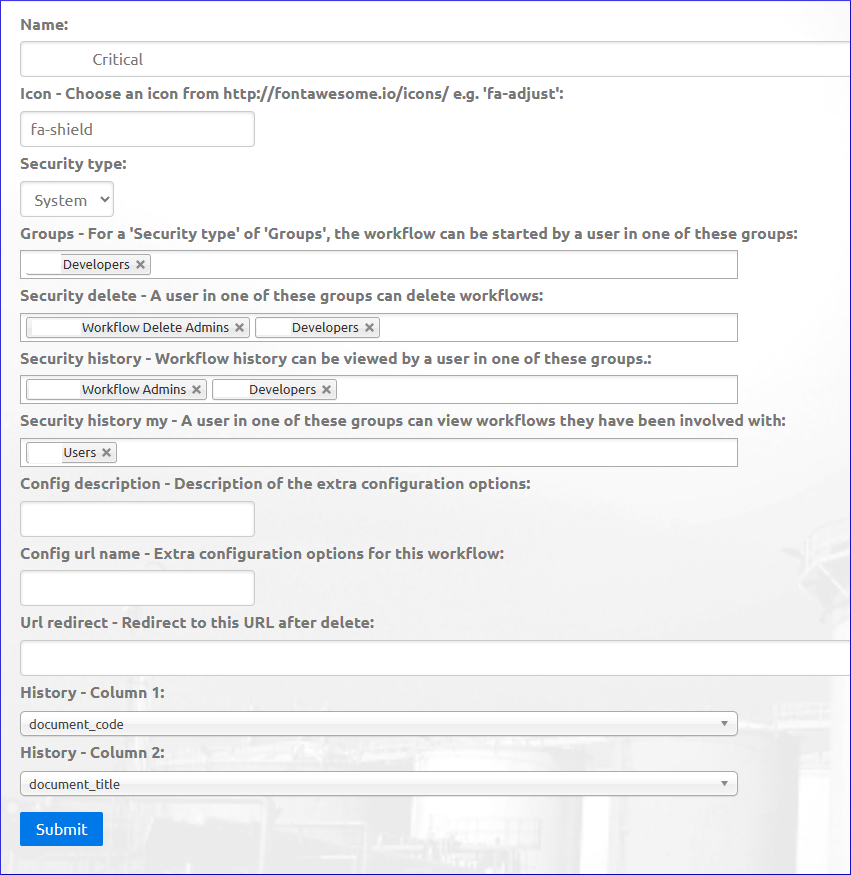

Here is an example configuration:

Created two Global Groups where needed i.e. adding the word Delete and then configuring the mapping as shown below.

_images/2023-11-15-app-workflow-global-groups.png

_images/2023-11-15-app-workflow-security.png

Hopefully a sensible way to approach this.

Prerequisite

Every task must have the following form variable:

auditDescription

The text in the Expression will be added to the audit for this process.

Script Task

From JSON process variables - any gotchas?, to save data in json format:

<scriptTask id="sid-780D1BD8-9E03-4802-8EC3-C944F5B00A67" scriptFormat="javascript" flowable:autoStoreVariables="false">
  <script>
    <![CDATA[var ObjectMapper = com.fasterxml.jackson.databind.ObjectMapper;
      var data = {};
      data.name = "Andrea";
      var httpTaskData = JSON.stringify(data);
      var json = new ObjectMapper().readTree(httpTaskData);
      execution.setVariable("httpTaskData", json);]]>
  </script>
</scriptTask>

Tip

Make sure the scriptFormat is set to javascript.

Management Commands

`6699-mapping-export`

To export the mapping for a workflow:

django-admin 6699-mapping-export myTempWorkflow

Tip

The management command will create an export file e.g. myTempWorkflow-mapping-export.json

To import the mapping for the workflow:

django-admin 6699-mapping-import ~/temp/myTempWorkflow-mapping-export.json

`create_pending_workflows`

Will use ScheduledWorkflowUser.objects.pending_with_options to check the database for pending workflows (created since the first minute of the day) and start them in Activiti.

It takes an optional argument - the name of the process definition e.g:

django-admin.py create_pending_workflows timeOff

`history-process`

Call the history_process API and output some information to a CSV file:

# source ('workflow')
workflow/management/commands/history-process.py

# e.g.
django-admin history-process periodicReview finished 2021-03-12 2021-03-14 document_code
django-admin history-process periodicReview started 2021-03-12 2021-03-14 document_code

Tip

Use started for workflows started within the two dates. Use finished for workflows finishing within the two dates.

Tip

The document_code in the example above is a variable name to add to the CSV file.

`rest_task`, `rest_process` and `rest_variable`

Tip

Source code for these management commands is in workflow/management/commands/

Display task data (and find the process ID) e.g:

django-admin rest-task fe485d7c-ce6b-11eb-b755-000d3a7f022c

Display process data e.g:

django-admin rest-process ba224c9a-7db3-11eb-ad2b-000d3a7f022c
# to display the data for one of the variables
django-admin rest-process ba224c9a-7db3-11eb-ad2b-000d3a7f022c documentTitle

Display (and update) a variable e.g:

django-admin rest-variable ba224c9a-7db3-11eb-ad2b-000d3a7f022c documentTitle
# to update the variable
django-admin rest-variable ba224c9a-7db3-11eb-ad2b-000d3a7f022c documentTitle "Management Systems"

Note

rest-variable can only update string variables at present. Feel free to update and improve!

Settings

Activiti

A standard install will have Flowable running on localhost. To configure this, add the following settings:

# 'settings/base.py'
ACTIVITI_HOST = 'localhost'
ACTIVITI_PORT = 8080

# 'settings/local.py'
ACTIVITI_PATH = 'activiti-rest'

# 'settings/production.py'
ACTIVITI_PATH = 'activiti-rest-{}'.format(DOMAIN.replace('.', '-').replace('-', '_'))

If Flowable is running on a different server, you can configure the settings differently e.g:

# 'settings/base.py'
ACTIVITI_PORT = 8080

# 'settings/local.py'
ACTIVITI_HOST = 'localhost'
ACTIVITI_PATH = 'activiti-rest'

# 'settings/production.py'
ACTIVITI_HOST = get_env_variable("ACTIVITI_HOST")
ACTIVITI_PATH = 'activiti-rest-{}'.format(DOMAIN.replace('.', '-').replace('-', '_'))

`workflow` app

The URL for an API should be added to WORKFLOW_API_URL. We also have a WORKFLOW_PLUGIN system which can be used to add extra variables to a workflow e.g:

WORKFLOW_API_URL = get_env_variable("WORKFLOW_API_URL")
WORKFLOW_PLUGIN = ("example_workflow.models.WorkflowContact",)

Add the WORKFLOW_API_URL to the pillar file for your project.

Warning

Do not append a / to the end of the WORKFLOW_API_URL e.g. http://127.0.0.1:3042/api/0.1

Settings (Dashboard)

History

Settings, Workflow, Tasks has a new History menu option which allows you to filter by workflow type e.g.

Task History

Settings, Workflow, Tasks and clicking on a process, gives you access to Task History:

Task

Delete by ID

from workflow.activiti import Activiti
activiti = Activiti()
# replace `17077`` with your task ID
task = activiti.task_status(17077)
task.process_key
activiti.process_delete(task.process_id)

Owner

To see if a user owns a task, we need to check:

Are they an assignee on the task (task.assignee == user.pk)?
Are they a member of the group…
