Microsoft Azure

email

To create an email address for a user, create the user in the Azure portal (https://portal.azure.com/) then browse to email in the Office 365 admin.

OpenID Connect

Is used by the login app. See OpenID Connect for more information.

Create Directory

Create your directory at https://portal.azure.com/

_images/azure-create-directory.png

Register application

Register your application:

_images/azure-app-registrations.png

Add a Redirect URI

Start by finding the URL:

# www.hatherleigh.info.sh shell
import urllib.parse
from django.conf import settings
from django.urls import reverse
urllib.parse.urljoin(settings.HOST_NAME, reverse('oidc_authentication_callback'))

Then add the URL:

Tip

Don’t forget to append a /.

_images/register-application.png

Tip

If you forget to add a Redirect URI or set it incorrectly, the error message from Azure Sign in will be, The reply URL specified in the request does not match the reply URLs configured for the application.

You can update the redirect URL by selecting Redirect URIs in the application overview:

_images/application-callback.png

Warning

You will need to append a / to the Redirect URI (e.g. http://localhost:8000/oidc/callback/).

Tip

For more information, see examples of callback urls in mozilla-django-oidc,

API permissions

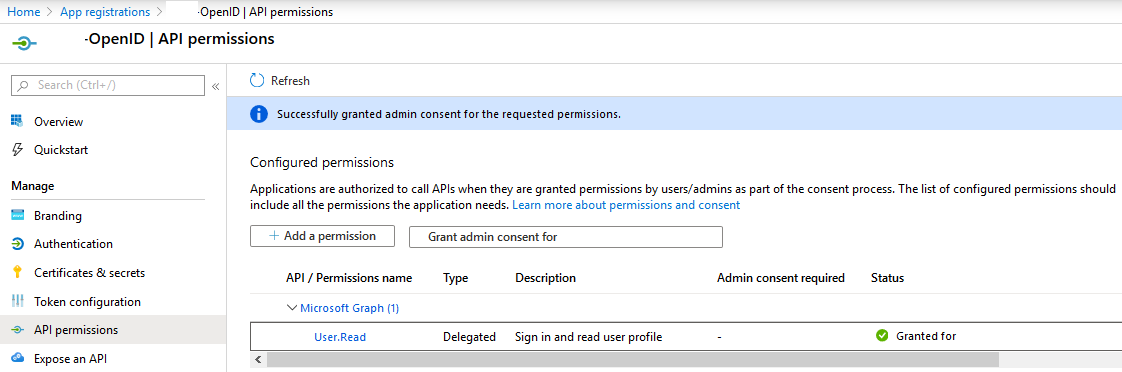

Check the API permissions and set the Status to Granted… for User.Read:

_images/2020-04-24-api-permission-user-read.png

Settings

The login app requires a .private file containing the following:

set -x OIDC_OP_AUTHORIZATION_ENDPOINT "https://login.microsoftonline.com/fcee251/oauth2/v2.0/authorize"
set -x OIDC_OP_TOKEN_ENDPOINT "https://login.microsoftonline.com/fcee251/oauth2/v2.0/token"

set -x OIDC_RP_CLIENT_ID "36ad9"
set -x OIDC_RP_CLIENT_SECRET "aead6"

set -x OIDC_OP_JWKS_ENDPOINT "https://login.microsoftonline.com/common/discovery/v2.0/keys"
set -x OIDC_RP_SIGN_ALGO "RS256"
set -x OIDC_USE_NONCE False

# used by 'login/management/commands/demo_data_login_oidc.py'
set -x KB_TEST_EMAIL_FOR_OIDC "patrick@kbsoftware.co.uk"
set -x KB_TEST_EMAIL_USERNAME "pkimber"

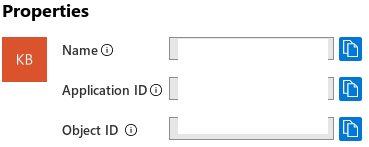

The Application ID (OIDC_RP_CLIENT_ID) is on the Overview page:

_images/application-id.png

The OIDC_OP_AUTHORIZATION_ENDPOINT and OIDC_OP_TOKEN_ENDPOINT endpoints are found by clicking on Endpoints

_images/application-endpoints.png

Create a secret in Certificates and secrets (OIDC_RP_CLIENT_SECRET):

_images/application-secrets.png

To get the OIDC_OP_JWKS_ENDPOINT and OIDC_RP_SIGN_ALGO browse to: https://login.microsoftonline.com/common/v2.0/.well-known/openid-configuration

_images/openid-configuration.png

Tip

I found this information in the Fetch the OpenID Connect metadata document

ssh

If your ssh connections are timing out, then add the following to your ~/.ssh/config file:

Host www.hatherleigh.info
    ServerAliveInterval 120
    ServerAliveCountMax 4

Tip

Replace Host as appropriate.
